 All Categories    Model LPC 10643-series
All Categories > Railroad > Code Line - Data Surge Protective Devices, Arresters > Model LPC 10643-series > View Items

Model LPC 10643-series

Check up to five results to perform an action.

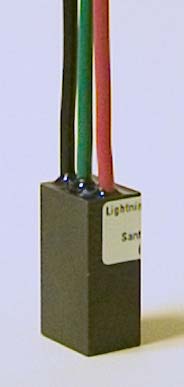

Miniature wire pair protector (4-20 ma transmitter protector). 2 lines and ground. 0.50" X 0.68" X 1.25" H. AWG 16 insulated leads. Protection maximum 30 KA, 8/20 µs line to line and each line to ground. Connections across the lines and to ground at or inside the equipment enclosure. Response less than a nanosecond. After initial breakdown clamping voltage immediately drops to 30V an any surge up to 30 KA of current. Automatic restoration to the line voltage after the surge passes.

Inquire regarding other available voltage ratings.

    border="0" Printable Page
    Email Email This Page
    Save To Favorites Save To Favorites
Compare Items
  Results 1 - 4 of 4 1

Models available (examples)


LPC 10643-2 18V peak (DC and AC)
LPC 10643-24 28V peak (DC and AC)
LPC 10643-1 50V peak (DC and AC)
LPC 10643-60 65V peak (DC and AC)
  Results 1 - 4 of 4 1

Manufacturer - Developer - Designer
Manufacturer of the highest quality lightning and surge protective devices (SPD) since 1974.
Lightning Protection Corporation specializes in devices for industrial, commercial, government and worldwide applications!
