Critical Circuits Info

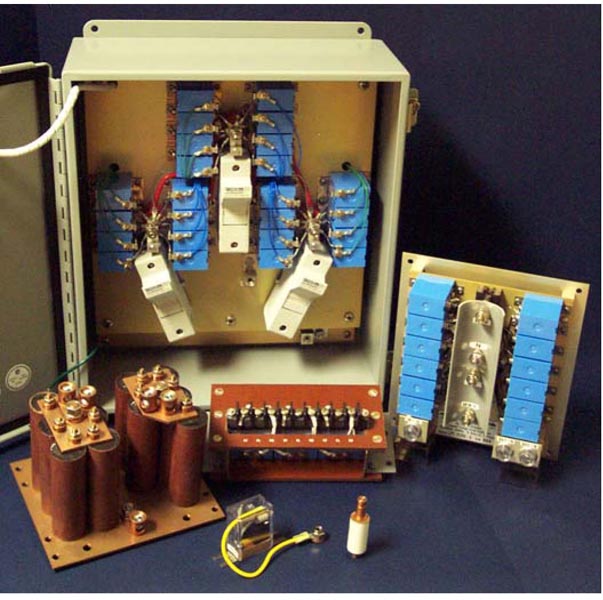

LIGHTNING PROTECTION CORPORATION (LPC) designs and manufactures surge protective devices (SPD) for critical electrical and electronic applications. The customer specifies the criteria, to which LPC responds with a proposed SPD product design. The product may be available as a shelf item, a modified shelf item, or an entirely new item/design. There is no tooling or engineering charge to the customer for new designs. The applications may be industrial, commercial, government, military for AC power, DC power, Communication and Signal, RF coaxial, and electronics.

• Aviation, Airports, ARTCC
• Mobile air traffic control towers
• EMP
• Tactical mobile
• Missile
• Military
• Ammunition bunkers
• Explosive atmospheres Plasma physics Weapon maintenance vehicles Shipboard High energy Severe duty

• 150,000 joules per mode
• In-line connection on 500 MCM cable
• 200 KA, 8/100 µs per mode
• 50 KA, 10/1000 µs duration
• 10 KA, 5000 µs duration
• 2 KA, 6 cycles of 60 Hz (rail induction from parallel transmission lines)
• 100 KA, 8/20 µs, 48 VDC, 1000 MCM feed thru bus
• Discharge of 100 KA, 8/20 µs currents induced or conducted in shielding of buried cable
• Critical fail safe open operation of surge protector
• 200 KA, 10/350 µs 75 VDC to 600 VDC (gas tube protector)
